W
WalterscheidProduct photos: Walterscheid
A-W240012100202

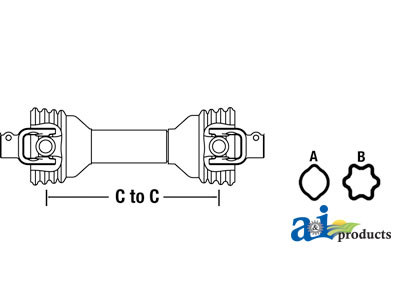

Driveline, Complete With 1-3/8" 21 Spline End Yokes
by Walterscheid · Drive Shaft / PTO
Driveline > Driveline Assembly
$841.99
each
Sold and shipped by GetPartFound LLC · 30-day returns on unused parts
Free standard shipping on orders over $500. Ships from the supplier's warehouse within 4 business days of your order; delivery typically takes 4 to 12 business days.
Authorized A&I Products reseller
Features and specs
| C to C Max | 1880 MM/ 74" |
|---|---|
| C to C Min | 1210 MM/ 48" |
| Implement | 1 3/8" - 21 |
| Size | 2400 |
| Total Collapsed Length | 1462 MM/ 58" |
| Tractor | 1 3/8" - 21 |
| Tube Style | A |
| Weight | 42 lb |
- Complete Driveline with spline end yokes. Minimum C-to C Length: 48" (1210 mm), Maximum C-to-C Length: 74" (1880 mm), Total collapsed length: 58" (1462 mm). Tractor end: 1-3/8" 21 Spline, Implement end: 1-3/8" 21 Spline. Lemon style tubing, type A. Replaces Walterscheid No. W240012100202. Fits Walterscheid W Series.
- It may be necessary to cut this driveline to length. Verify the length by ensuring that sufficient overlap of the drive tubes exists in all working positions without the possibility of bottoming out.
- Original Walterscheid part.
