A-TLH004

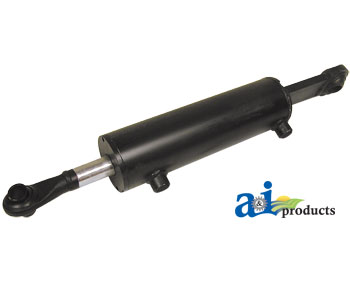

Hydraulic Top Link Cylinder (Cat I Rod/Cat II Base) (3" Bore)
by A&I Products · Hydraulic Cylinder
Hitch & Drawbar Parts > Hitches: 2PT and 3PTHitch & Drawbar Parts > Side/ Top Link CylindersHitch & Drawbar Parts > Top Links, Top Link Pins, Center Links & Jacks
$414.86
each
Sold and shipped by GetPartFound LLC · 30-day returns on unused parts
Free standard shipping on orders over $500. Ships from the supplier's warehouse within 4 business days of your order; delivery typically takes 4 to 12 business days.
Authorized A&I Products reseller
Features and specs
| Barrel Length | 12.438" |
|---|---|
| Base End Ball Inside Dia | 1" |
| Base End Ball Width | 1.750" |
| Base To Ball Center Lngth | 5.500" |

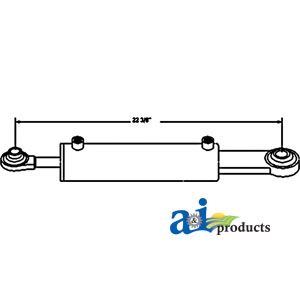

| Compressed Length | 22" |
| PSI | 1450.377 |
| Rod End Ball Inside Diame | .750" |
| Rod End Ball Width | 1.750" |
| Stroke | 8" |
| Working Pressure | 1450 lbs |
| Weight | 17.9 lb |
| UPC | 67195872622 |
- All ports .563"-18 ORB w/ two adapters .563" -18 ORBM X .250" NPTM 90° swivel.
Fits
0 models across 4 brands. Pick one to browse the rest of its parts.
