A-TLH001

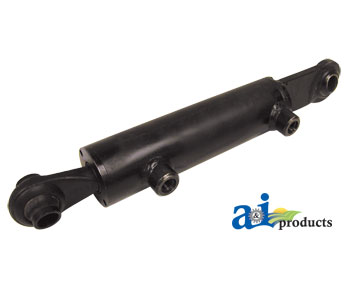

Hydraulic Top Link Cylinder (Cat I) (2" Bore)
by A&I Products · Hydraulic Cylinder
Hitch & Drawbar Parts > Hitches: 2PT and 3PTHitch & Drawbar Parts > Side/ Top Link Cylinders
$297.45
each
Sold and shipped by GetPartFound LLC · 30-day returns on unused parts
Free standard shipping on orders over $500. Ships from the supplier's warehouse within 4 business days of your order; delivery typically takes 4 to 12 business days.
Authorized A&I Products reseller
Features and specs
| Barrel Length | 12.438" |
|---|---|
| Base End Ball Inside Dia | .750" |
| Base End Ball Width | 1.375" |
| Base To Ball Center Lngth | 3.500" |
| Compressed Length | 20" |
| PSI | 1450.377 |
| Rod End Ball Inside Diame | .750" |
| Rod End Ball Width | 1.750" |
| Stroke | 8" |
| Working Pressure | 1450 lbs |
| Weight | 12.3 lb |
| UPC | 67195872621 |
- All ports .563"-18 ORB
