A&I
A&I ProductsProduct photos: A&I Products

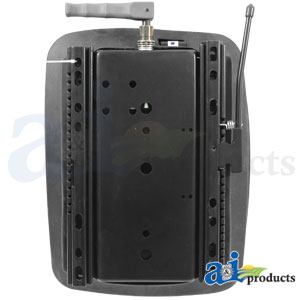

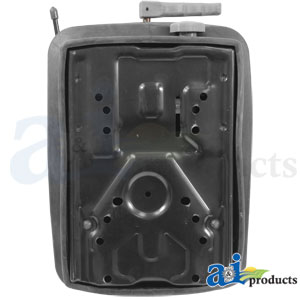

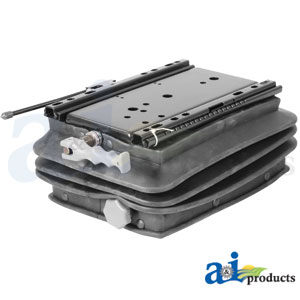

A-SSM100
Mechanical Suspension, Narrow Base
by A&I Products
Seats > F Series Seat SuspensionsSeats > Misc Seat Parts
- Some ship-to locations may not be available.
$289.04
each
Sold and shipped by GetPartFound LLC · 30-day returns on unused parts
Free standard shipping on orders over $500. Ships from the supplier's warehouse within 4 business days of your order; delivery typically takes 4 to 12 business days.
Authorized A&I Products reseller
Features and specs
| Weight | 31 lb |
|---|---|
| UPC | 67195866061 |
- Mechanical Suspension
- Suspension Stroke 4" / 100mm
- Slide Track Fore & Aft Travel Is 6" / 150mm, C to C rail to rail is 6.75"
- Weight Adjustment 110 - 330 lbs. / 50 - 150kg

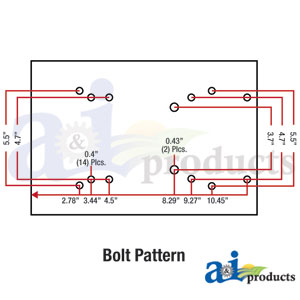

- All dimensions & specifications must be checked before ordering. This is a universal suspension meant for a flat mounting surface. Some applications may require drilling & bracket fabrication to mount.

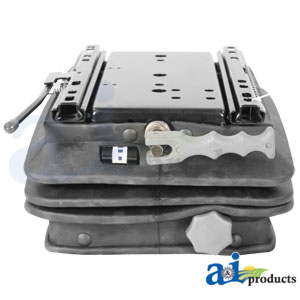

- Black long lever is for the slide track
- Gray handle lever in the middle is for adjusting the weight
- Gray star shaped knob is to adjust suspension up or down
- The following seats can be added to this suspension. F20ST105, F20ST135, F20ST145, F20ST155, TMS111BL, TMS111YL, TMS111GR, TMS444BL, TMS444YL, TMS444GR, LGS100BL, LGS100YL, T500BL, T500GY, FLS122BL, FLS322BL, T110BL, T110YL, T122BL
Fits
103 models across 23 brands. Pick one to browse the rest of its parts.
