A-SLH101

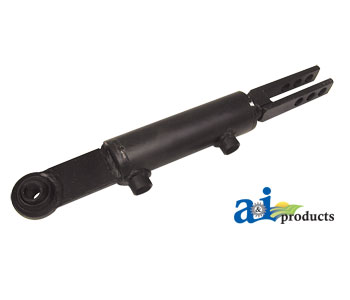

Hydraulic Side Link Cylinder, Cat 0 Base End w/ Clevis Rod End (2" Bore)
by A&I Products · Hydraulic Cylinder
Hitch & Drawbar Parts > Hitches: 2PT and 3PTHitch & Drawbar Parts > Side/ Top Link Cylinders
$292.10
each
Sold and shipped by GetPartFound LLC · 30-day returns on unused parts
Free standard shipping on orders over $500. Ships from the supplier's warehouse within 4 business days of your order; delivery typically takes 4 to 12 business days.
Authorized A&I Products reseller
Features and specs
| Dim G (7) | 5.625" Clevis Depth, .875" Clevis Width, All Clevis Holes Drilled For .625" Pin |
|---|---|
| Barrel Length | 8.437" |
| Base End Ball Inside Dia | .750" |
| Base End Width | 1.375" |
| Base To Ball Center Lngth | 3.875" |

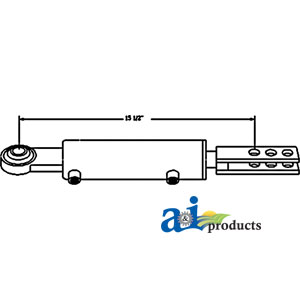

| Compressed Length | 15.500", 16.500" & 17.500" |
| Stroke | 4" |
| Working Pressure | 2465 lbs |
| Weight | 9.74 lb |
| UPC | 67195872601 |
- All ports .563"-18 ORB w/ two adapters .563"-18 ORBM X .250" NPTM 90� swivel.
