A-OK4580

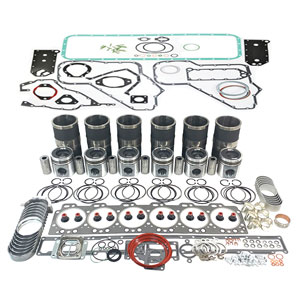

Major Engine Overhaul Kit (Thick Wall- Short)
by A&I Products · Kit / Set
Engine Overhaul Kits > 6-830T Turbo Charged Cummins "C" SeriesEngine Parts > 6-830T Turbo Charged Cummins "C" Series
Features and specs
| Dim A (1) | Standard Piston Marked: 9566 |
|---|
- Cummins Control Part List#'s (CPL): 1216, 1217, 1221, (1282 Marine Engine), 1366, (1929 Marine Engine), (2172 Marine Engine), 2960 & 8089.
- Block 3934906 (Thick Wall / Short Liner), Flange: 5.152", Length: 9.12"
- Serial & CPL#'s Are Found On A Tag Located On The Side Of The Timing Gear Housing And/Or Valve Cover. If Tag Is Missing, Check The Top Of The Oil Cooler Housing To See If It Is Stamped There.
- Serial Number Consist Of 8 Digits. CPL#'s Are 3 Or 4 Digits.
- Includes: Kit Contains: Cylinder Kits, Main & Con Rod Bearings, Front & Rear Crankshaft Seals, Top & Bottom Gasket Sets And Piston & Cam Bushing.
Fits
1 model across 1 brand. Pick one to browse the rest of its parts.
