A-F20A5050

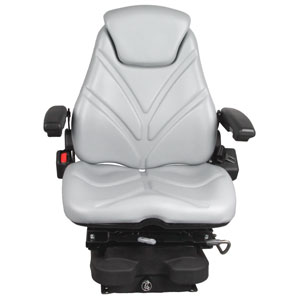

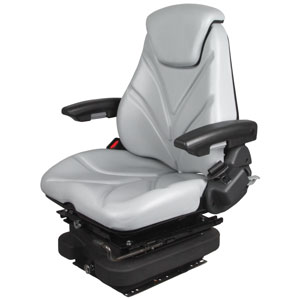

Seat, F20 Series w/ Isolator, Low Pro Air Suspension, Gray Vinyl
by A&I Products · Seat
Seats > F Series Seats
- Some ship-to locations may not be available.
$1,161.60
each
Sold and shipped by GetPartFound LLC · 30-day returns on unused parts
Free standard shipping on orders over $500. Ships from the supplier's warehouse within 4 business days of your order; delivery typically takes 4 to 12 business days.
Authorized A&I Products reseller
Features and specs
| Amperage | 9 Max |
|---|---|
| Volt | 12 |
| Weight | 92 lb |
| UPC | 67195876236 |
- The F20 A-F20A5050 F-Series seat has a 2" low profile air suspension stroke with 6" slide track travel, and weight adjustment from 110 to 330 lbs. The seat includes an isolator allowing 0.79" front-to-rear movement for comfort and can be engaged or disengaged with a lever. The seat features lumbar support, an ergonomic design, adjustable backrest, headrest, and armrests. The removeable seat cushion and backrest are covered in durable gray vinyl and includes flat pad presence switch and seat belt. Made of heavy-duty materials, the seat requires some assembly and may need drilling for installation. It operates at 9 amps and runs on 12 volts.
- Suspension stroke 2" / 50.8mm
- Slide track travel 6" / 150mm
- Weight adjustment 110 - 330 lbs. / 150kg
- Mechanical lumbar support
- Ergonomic design
- Multi-angle adjustable backrest, adjustable headrest & fold-up armrests
- Seat cushion & backrest are removeable. OPS, seat belt & isolator included
- Flat pad style operators presence switch is installed in between seat cushion and pan. The isolator allows front to rear movement (.79"/20mm fore & .79"/20mm aft) to be absorbed, giving the operator a more comfortable and healthier ride. It has one lever to engage or disengage isolator function
- Heavy duty construction, some assembly required
- All dimensions & specifications must be checked before ordering. This is a universal seat meant for a flat mounting surface. Some applications may require drilling & bracket fabrication to mount seat
- Includes: F20 Series gray vinyl seat / low profile air suspension / slide tracks / armrests / headrest / OPS / seat belt / isolator
