A&I
A&I ProductsProduct photos: A&I Products
A-F20A5030

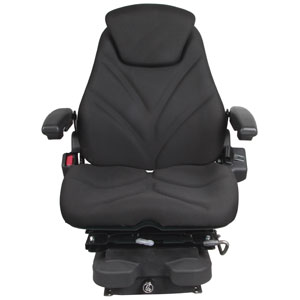

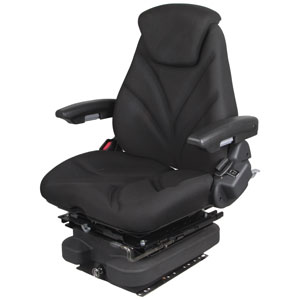

Seat, F20 Series w/ Isolator, Low Pro Air Suspension, Black Cloth
by A&I Products · Seat
Seats > F Series Seats
- Some ship-to locations may not be available.
$1,192.74
each
Sold and shipped by GetPartFound LLC · 30-day returns on unused parts
Free standard shipping on orders over $500. Ships from the supplier's warehouse within 4 business days of your order; delivery typically takes 4 to 12 business days.
Authorized A&I Products reseller
Features and specs
| Amperage | 9 Max |
|---|---|
| Volt | 12 |
| Weight | 94 lb |
| UPC | 67195876230 |
- The F20 A-F20A5030 F-Series seat has a 2" low profile air suspension stroke with 6" slide track travel, and weight adjustment from 110 to 330 lbs. The seat includes an isolator allowing 0.79" front-to-rear movement for comfort and can be engaged or disengaged with a lever. The seat features lumbar support, an ergonomic design, adjustable backrest, headrest, and armrests. The removeable seat cushion and backrest are covered in durable black cloth and includes flat pad presence switch and seat belt. Made of heavy-duty materials, the seat requires some assembly and may need drilling for installation. It operates at 9 amps and runs on 12 volts.
- Suspension stroke 2" / 50.8mm
- Slide track travel 6" / 150mm
- Weight adjustment 110 - 330 lbs. / 150kg
- Mechanical lumbar support
- Ergonomic design
- Multi-angle adjustable backrest, adjustable headrest & fold-up armrests
- Seat cushion & backrest are removeable. OPS, seat belt & isolator included
- Flat pad style operators presence switch is installed in between seat cushion and pan. The isolator allows front to rear movement (.79"/20mm fore & .79"/20mm aft) to be absorbed, giving the operator a more comfortable and healthier ride. It has one lever to engage or disengage isolator function
- Heavy duty construction, some assembly required
- All dimensions & specifications must be checked before ordering. This is a universal seat meant for a flat mounting surface. Some applications may require drilling & bracket fabrication to mount seat
- Includes: F20 Series black cloth seat / low profile air suspension / slide tracks / armrests / headrest / OPS / seat belt / isolator
Fits
595 models across 22 brands. Pick one to browse the rest of its parts.
Ariens / Gravely7 models
Zero-turn mowers
Bad Boy11 models
Bobcat17 models
Case-IH49 models
Caterpillar76 models
Forklifts
36500C3000C3500C4000C5000C5500C6500DP40KDP40KLDP45KDP50KDP70EE3000E3500E4000E5000E5500E6000E6500E7000E8000E10000E12000EC4000ET3000ET3500ET4000EX5000GC35KGC40KGC40KPRHSTRGC40KSTRGC45KPRHSTRGC45KSWBGC55KGC55KPRSTRGC55KSTRGC60KGC70KGC70KPRHGC70KPRHSTRGC70KSTRGP40KGP40KLGP45KGP50KP3000P3500P4000P4000DP5000P5500P5500DP6000P6000DP6500P6500DP7000P7000DP17500P20000P22000P26500P30000P33000P36000PC4000
Ford / New Holland40 models
Tractors
Grasshopper23 models
Hustler18 models
Hyster57 models
Industrial/construction equipment
E25ZE30HSDE30ZE35HSDE35ZE40HSDE40ZSE45XNE50XNE55XNE60XNE65XNE70XNE70ZE80ZE100ZE100ZSE120ZF40FTSH30FTH35FTH40FTH40FTSH50FTH60FTH80FTH90FTH100FTH110FTH120FTH135FTH155FTH170FTH175HTH190FTJ30ZTJ35ZTJ40ZJ40ZTJ50ZJ60ZJ65ZS30FTS35FTS40FTS50FTS55FTSS60FTS70FTS80FTS80FTBCSS100FTS100FTBCSS120FTS120FTPRSS135FTS155FT
