A-F10M6150

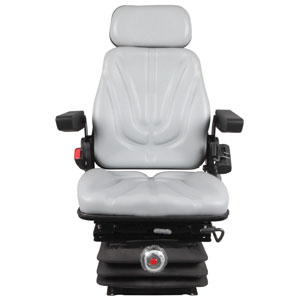

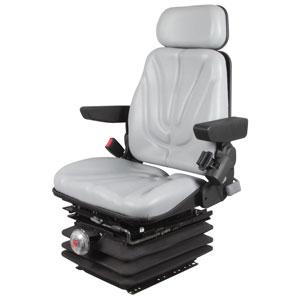

Seat, F10 Series w/ Isolator, Mechanical Suspension, Gray Vinyl
by A&I Products · Seat
Seats > F Series Seats
- Some ship-to locations may not be available.
Features and specs
| UPC | 67195876214 |
|---|
- The A-F10M6150 F-Series seat has a 4" mechanical suspension with 6" slide track travel, and weight adjustment from 110 to 330 lbs. The isolator allows 0.79" front-to-rear movement for comfort and canbe engaged or disengaged with a lever. This seat features lumbar support, an ergonomic design, adjustable backrest, headrest, and armrests. The removeable seat cushion and backrest are covered indurable gray vinyl and includes operator presence switch (OPS) and seat belt. Made of heavy-duty materials, the seat requires some assembly and may need drilling for installation. It operates at 9 amps and runs on 12 volts.
- Suspension stroke 4" / 100mm
- Slide track travel 6" / 150mm
- Weight adjustment 110 - 330 lbs. / 150kg
- Mechanical lumbar support
- Ergonomic design
- Multi-angle adjustable backrest, adjustable headrest & fold-up armrests
- Seat cushion & backrest are removable. OPS & seat belt included
- Flat pad style operators presence switch is installed in between seat cushion and pan. The isolator allows front to rear movement (.79"/20mm fore & .79"/20mm aft) to be absorbed, giving the operator a more comfortable and healthier ride. It has one lever
- Heavy duty construction, some assembly required
- All dimensions & specifications must be checked before ordering. This is a universal seat meant for a flat mounting surface. Some applications may require drilling & bracket fabrication to mount seat
- Includes: F10 Series gray vinyl seat / STD profile wide base mechanical suspension / slide tracks / armrests / headrest / OPS / seat belt / isolator
Fits
542 models across 23 brands. Pick one to browse the rest of its parts.
Agco32 models
Allis-Chalmers39 models + all machines
Tractors
Machines
Bobcatall machines
Machines
Case-IH94 models + all machines
Tractors
8709701070117012701290129413701390149015701690189620902094209622902294239023942470259025942670287032943394359444904690489051205130514052205240525071107120713071407150721072207230724072508910892089308940895091109130915091709180921092309240925092609270928093109330937093809390MAXXUM 110MAXXUM 115MAXXUM 120MAXXUM 125MAXXUM 130MAXXUM 140MX80CMX90CMX100MX100CMX120MX135MX150MX170MXU100MXU110MXU125MXU130MXU135PUMA 115PUMA 125PUMA 140PUMA 145PUMA 155PUMA 210
Machines
Caterpillarall machines
Machines
Challengerall machines
Machines
David Brownall machines
Machines
Deutz10 models + all machines
Machines
Dresserall machines
Machines
Fiatall machines
Machines
Ford / New Holland47 models + all machines
Tractors
Machines
Gleanerall combines
Combines
JCBall industrial/construction equipment
Industrial/construction equipment
John Deere67 models + all machines
Tractors
5065M5075M5085M5095M5095MH5105M601061006100D61106110D6110L6115D61206125D6130D6140D620062106210L621562206230630063106310L6310S63206320L6330640064106410L6410S641564206420L6430650065106510L6510S6520L6615671569207130722072307320733074207430 PREMIUM75207530 PREMIUM7720782082308230T83308330T8430 Model Year 2006-20098430T8440853086308640
Machines
Komatsuall industrial/construction equipment
Industrial/construction equipment
Kubota22 models + all machines
Tractors
Machines
Massey Ferguson105 models + all machines
Tractors
67069069869926402680270527452775306030703075312033153325333033403350335535253545361536253635364536503660368036904225423542404243424542534255426042634265427043254335434543554360437054255435544554555460546554705475548061506170618061906235624562556270628062906445645564606465647064756480648564906495649764997465747574807485749074957497749981108120814081508160821082208240825082708280845084608470848086508660867086808690
