A-CS62917
Driveline; W/ Overrunning Clutch
by Bondioli & Pavesi · Drive Shaft / PTO
Driveline > Driveline Assembly
$380.33
each
Sold and shipped by GetPartFound LLC · 30-day returns on unused parts
Free standard shipping on orders over $500. Ships from the supplier's warehouse within 4 business days of your order; delivery typically takes 4 to 12 business days.
Authorized A&I Products reseller
Features and specs
| C to C Max | 1080 mm/ 43" |
|---|---|
| C to C Min | 740 mm/ 29" |
| Category | 4 HD (64HP) |
| Implement | 1 3/8" -6 O.R. CLUTCH |
| Series | 100 |
| Size | 6 |
| Total Collapsed Length | 990 mm/ 39" |
| Tractor | 1 3/8" -6 |
| Weight | 39 lb |

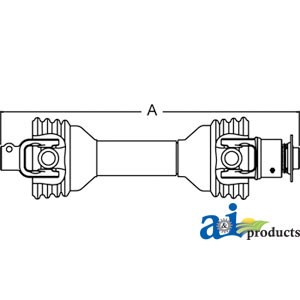

- 100 Series Driveline with overrunning clutch, size 6. Driveline rated as a category 4 HD (64 hp). Minimum C-to-C length: 29" (740 mm), Maximum length: 43" (1080 mm), Total collapsed length: 39" (990 mm). Tractor end: 1-3/8" 6 Spline, Female end: 1-3/8" 6 spline overrunning clutch. Fits Bondioli & Pavesi applications.
- It may be necessary to cut this driveline to length. Verify the length by ensuring that sufficient overlap of the drive tubes exists in all working positions without the possibility of bottoming out.
- Genuine alternative to original part.
