A-CS54816

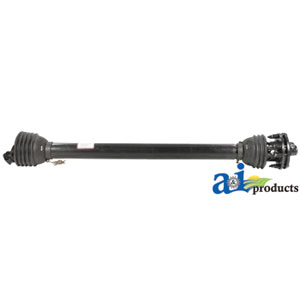

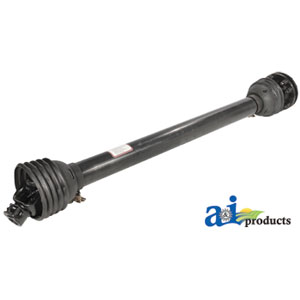

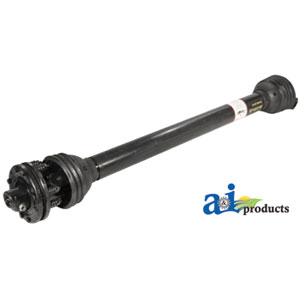

Driveline; W/ 7" Friction Clutch
by Bondioli & Pavesi · Drive Shaft / PTO
Driveline (by application) > Driveline AssemblyDriveline > Driveline Assembly
$495.13
each
Sold and shipped by GetPartFound LLC · 30-day returns on unused parts
Free standard shipping on orders over $500. Ships from the supplier's warehouse within 4 business days of your order; delivery typically takes 4 to 12 business days.
Authorized A&I Products reseller
Features and specs
| C to C Max | 1880mm/ 74" |
|---|---|
| C to C Min | 1210mm / 48" |
| Category | 4 (47HP) |
| Clutch Diameter | 7.09" |
| Implement | 1 3/8"-21 spl. FF1 FR.CL. |
| Series | 100 |
| Size | 5 |
| Total Collapsed Length | 1470mm / 58" |
| Tractor | 1 3/8"-6 |
| Weight | 55 lb |
| UPC | 67195873344 |
- Complete Driveline with 7" Friction Clutch. Minimum C-to-C Length: 48" (1210 mm), Maximum C-to-C Length: 74" (1880 mm), Total Collapsed Length: 58" (1470 mm). Tractor end: 1-3/8" - 6 Spline. Implement end.: 1-3/8" 21 Spline. FF1 FR. CL., Clutch Dia.: 7.09". Series: 100. Category 4 (47 hp). Fits Bondioli & Pavesi 100 Series. This is a complete replacement; components from original will not interchange.
- It may be necessary to cut this driveline to length. Verify the length by ensuring that sufficient overlap of the drive tubes exists in all working positions without the possibility of bottoming out.
- Genuine alternative to original part.
