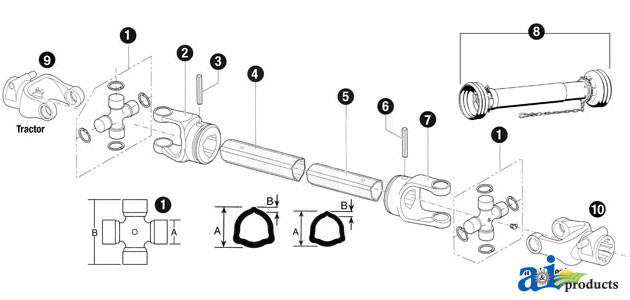

A-CS53811
Driveline; W/ 1 3/8" 6 Spline QD Yokes
by Bondioli & Pavesi · Drive Shaft / PTO
Driveline > Driveline Assembly
$174.14
each
Sold and shipped by GetPartFound LLC · 30-day returns on unused parts
Free standard shipping on orders over $500. Ships from the supplier's warehouse within 4 business days of your order; delivery typically takes 4 to 12 business days.
Authorized A&I Products reseller
Features and specs
| C to C Max | 1470 mm/ 58" |
|---|---|
| C to C Min | 965mm/ 38" |
| Category | 4 (47HP) |
| Implement | 1 3/8" -6 |
| Series | 100 |
| Size | 5 |
| Total Collapsed Length | 1168mm/ 46" |
| Tractor | 1 3/8" -6 |
| Type | 6 ft. Heavy Duty |
| Weight | 36 lb |
| UPC | 67195873332 |
- 100 Series Rotary Cutter Driveline Assembly with quick disconnect yokes. Driveline is furnished with cross kits and yokes. Driveline minimum C-to-C is 38" (965 mm), maximum C-to-C length is 58" (1470 mm), total collapsed length is 46" (1168mm). Tractor& implement ends: 1-3/8" 6 Spline. Driveline rated as category 4 (47 hp), size 5. Fits Bondioli & Pavesi applications.
- It may be necessary to cut this driveline to length. Verify the length by ensuring that sufficient overlap of the drive tubes exists in all working positions without the possibility of bottoming out.
- Genuine alternative to original part.
