A-CS43518
Driveline; W/ Shear Bolt Clutch
by Bondioli & Pavesi · Drive Shaft / PTO
Driveline (by application) > Driveline AssemblyDriveline > Driveline Assembly
$222.09
each
Sold and shipped by GetPartFound LLC · 30-day returns on unused parts
Free standard shipping on orders over $500. Ships from the supplier's warehouse within 4 business days of your order; delivery typically takes 4 to 12 business days.
Authorized A&I Products reseller
Features and specs

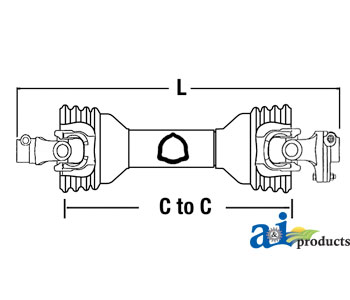

| C to C Max | 1310 mm/ 52" |
|---|---|
| C to C Min | 885mm / 35" |
| Category | 3 (35HP) |
| Implement | 1 3/8" -6 w/ S.B. Clutch |
| Series | 100 |
| Size | 4 |
| Total Collapsed Length | 1065mm / 42" |
| Tractor | 1 3/8"-6 |
| Weight | 25 lb |
| UPC | 67195873330 |
- Complete Driveline with Shear Bolt Clutch. 100 series, category 3, size 4 driveline. Minimum C-to-C length: 35" (885 mm), Maximum C-to-C length: 52" (1310 mm), Total collapsed length: 42" (1065 mm). Tractor end: 1-3/8" 6 spline, Implement end: 1-3/8" 6 Spline with shear bolt clutch. Fits Bondioli & Pavesi 100 Series.
- It may be necessary to cut this driveline to length. Verify the length by ensuring that sufficient overlap of the drive tubes exists in all working positions without the possibility of bottoming out.
- Genuine alternative to original part.
