BP
Bondioli & PavesiProduct photos: Bondioli & Pavesi
A-CS42016
Driveline; W/ 6" Friction Clutch
by Bondioli & Pavesi · Drive Shaft / PTO
Driveline (by application) > Driveline AssemblyDriveline > Driveline Assembly
$272.11
each
Sold and shipped by GetPartFound LLC · 30-day returns on unused parts
Free standard shipping on orders over $500. Ships from the supplier's warehouse within 4 business days of your order; delivery typically takes 4 to 12 business days.
Authorized A&I Products reseller
Features and specs

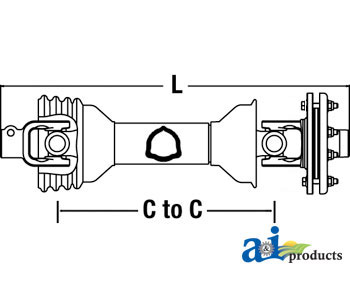

| C to C Max | 750 mm/ 29.375" |
|---|---|
| C to C Min | 510 mm/ 20" |
| Category | 3 (35HP) |
| Clutch Diameter | 6" |
| Implement | 1 3/8" - 6 spl. 2 disc clutch |
| Series | 100 |
| Size | 4 |
| Total Collapsed Length | 746 mm/ 29.37" |
| Tractor | 1 3/8" -6 |
| Weight | 27 lb |
| UPC | 67195868680 |
- Rotary tiller driveline with friction disc clutch. Driveline rated as a category 3 (35 hp), 100 series. Driveline C-to-C length: 20" (510 mm), Max C-to-C length: 29.375" (746 mm), Total collapsed length: 29.37" (746 mm). Tractor end: 1-3/8" 6 spline, Implement end: 1-3/8" 6 spline 6" 2 disc clutch. Fits King Kutter Rotary Tillers.
- It may be necessary to cut this driveline to length. Verify the length by ensuring that sufficient overlap of the drive tubes exists in all working positions without the possibility of bottoming out.
- Genuine alternative to original part.
