BP
Bondioli & PavesiProduct photos: Bondioli & Pavesi
A-CS24314

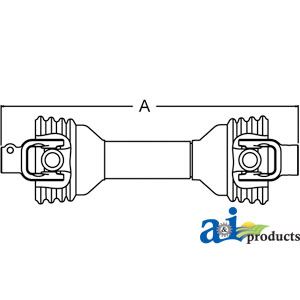

Driveline, Economy Rotary Cutter
by Bondioli & Pavesi · Drive Shaft / PTO
Driveline > Driveline AssemblyDriveline (by application) > Driveline Assembly
$197.35
each
Sold and shipped by GetPartFound LLC · 30-day returns on unused parts
Free standard shipping on orders over $500. Ships from the supplier's warehouse within 4 business days of your order; delivery typically takes 4 to 12 business days.
Authorized A&I Products reseller
Features and specs
| C to C Max | 1700 mm/ 67" |
|---|---|
| C to C Min | 1100 mm/ 43" |
| Category | 2 (20HP) |
| Implement | 1 3/8" RB 1/2" PH |
| Series | 100 |
| Size | 2 |
| Total Collapsed Length | 1295 mm/ 51" |
| Tractor | 1 3/8" -6 |
| Type | Pull/Towed |
| Weight | 23 lb |
- 100 Series Economy Driveline. Driveline minimum C-to-C is 43" (1100 mm), maximum C-to-C length is 67" (1700mm), total collapsed length is 51" (12955 mm). Tractor ends: 1-3/8" 6 Spline and implement ends are 1-3/8" round bore with 1/2" pin hole. Driveline rated as category 2 (20 hp). Fits Bondioli & Pavesi Size 2.
- It may be necessary to cut this driveline to length. Verify the length by ensuring that sufficient overlap of the drive tubes exists in all working positions without the possibility of bottoming out.
- Use a grade 2 shear bolt (A-RCSBKT). The use of a harder grade bolt will void the warranty.
- Genuine alternative to original part.
