BP
Bondioli & PavesiProduct photos: Bondioli & Pavesi
A-BP412100101

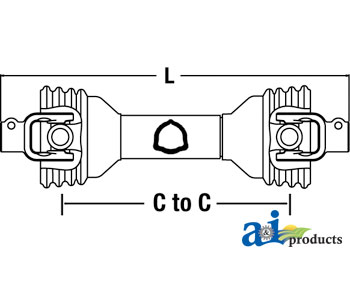

Driveline; W/ 1 3/8" 6 Spline QD Yokes
by Bondioli & Pavesi · Drive Shaft / PTO
Driveline > Driveline Assembly
$756.50
each
Sold and shipped by GetPartFound LLC · 30-day returns on unused parts
Free standard shipping on orders over $500. Ships from the supplier's warehouse within 4 business days of your order; delivery typically takes 4 to 12 business days.
Authorized A&I Products reseller
Features and specs
| C to C Max | 1910 MM/ 75" |
|---|---|
| C to C Min | 1210 MM/ 48" |
| Implement | 1 3/8" - 6 |
| Size | 4 |
| Total Collapsed Length | 1420MM/ 56" |
| Tractor | 1 3/8" - 6 |
| Weight | 29.99 lb |
- Complete Driveline. Minimum C-to-C Length: 48" (1210 mm), Maximum C-to-C Length: 75" (1910 mm), Total Collapsed Length: 56" (1420 mm). Tractor end: 1-3/8" - 6 Spline. Implement end: 1-3/8" - 6 Spline.
- It may be necessary to cut this driveline to length. Verify the length by ensuring that sufficient overlap of the drive tubes exists in all working positions without the possibility of bottoming out.
- Original Bondioli & Pavesi part.
