A-BP13832

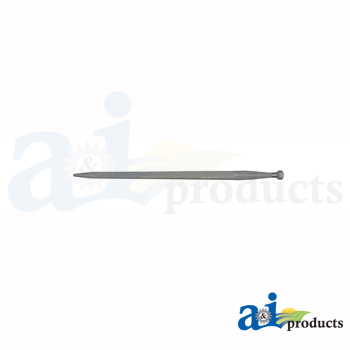

Bale Point 1 3/8 x 32 w/nut
by A&I Products · Tooth / Point
Hay Tool Parts > Bale Points
- Some ship-to locations may not be available.
$50.84
each
Sold and shipped by GetPartFound LLC · 30-day returns on unused parts
Free standard shipping on orders over $500. Ships from the supplier's warehouse within 4 business days of your order; delivery typically takes 4 to 12 business days.
Authorized A&I Products reseller
Features and specs
| Dim A (1) | 1.375" Dia. |
|---|---|
| Dim B (2) | 32" Long |
| Dim C (3) | 20 MM Nut |
| Dim D (4) | Load Capacity: 1500 lbs. on 23.62" (600mm) Load Center |
| Dim E (5) | Tightening Torque For Nut: 280-315 Ft. Lbs. |
| Dim F (6) | Uses Sleeve BPS138 |
| Dim G (7) | Replacement Nut BPN2015 Available |
| Weight | 9.02 lb |
| UPC | 67195868530 |
- New bale point. Bale point has a 1,500 lb. load capacity. Bale point torqued to 280-315 ft. lbs. Bale point is 32" long with 1.375" diameter and 20 mm nut.
- Standard duty bale points may be painted either red or gray.
