A-826-022C
Driveline; Complete
by A&I Products · Drive Shaft / PTO
Driveline (by application) > Driveline Assembly
$338.58
each
Sold and shipped by GetPartFound LLC · 30-day returns on unused parts
Free standard shipping on orders over $500. Ships from the supplier's warehouse within 4 business days of your order; delivery typically takes 4 to 12 business days.
Authorized A&I Products reseller
Features and specs
| C to C Max | 1310 mm/ 52" |
|---|---|
| C to C Min | 885 mm/ 35" |
| Category | 3 (35HP) |
| Clutch Diameter | 7.09" |
| Implement | 1 3/8" R.B. w/ FF1 FR.CL. w/.5" Pin Hole |
| Series | 100 |
| Size | 5 |
| Total Collapsed Length | 1140 mm/ 45" |
| Tractor | 1 3/8"- 6 |
| Weight | 44 lb |

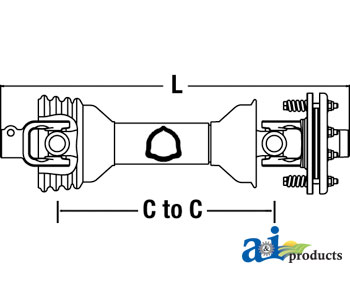

- New 100 Series Driveline with friction clutch, size 5. Driveline minimum C-to-C length: 35" (885 mm), Maximum C-to-C length: 52" (1310 mm), Total collapsed length: 45" (1140 mm). Tractor end is a 1-3/8" 6 spline yoke. Implement end is 1-3/8" round bore FF1 friction clutch with a 5" pin hole. Driveline is rated as a category 4 (47 hp). Fits Land Pride Rotary Cutters.
- It may be necessary to cut this driveline to length. Verify the length by ensuring that sufficient overlap of the drive tubes exists in all working positions without the possibility of bottoming out.
