A&I
A&I ProductsProduct photos: A&I Products
A-50034237

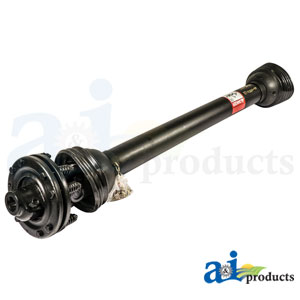

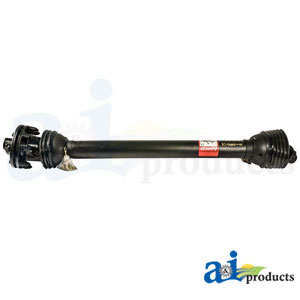

Driveline; Complete
by A&I Products · Drive Shaft / PTO
Driveline (by application) > Driveline Assembly
$379.63
each
Sold and shipped by GetPartFound LLC · 30-day returns on unused parts
Free standard shipping on orders over $500. Ships from the supplier's warehouse within 4 business days of your order; delivery typically takes 4 to 12 business days.
Authorized A&I Products reseller
Features and specs
| Dim L (12) | 1365 mm/ 54" |
|---|---|
| C to C | 1120 mm/ 44" |
| Clutch Diameter | 7.87" |
| Implement | 1 3/8" -6 |
| Tractor | 1 3/8" -6 |
| Weight | 60.15 lb |

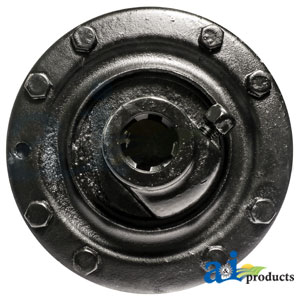

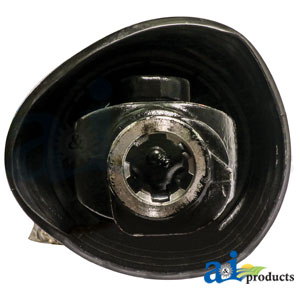

- New 100 Series size 6 Driveline with Friction Clutch. Driveline is rated as a category 4 HD (64 hp) with 7 ft. lift/3-pt hitch. The drivelines minimum C-to-C length is 44" (1120 mm), maximum length: 67" (1710 mm), and total collapsed length is 54" (1365 mm). The tractor end is 1-3/8" 6 spline yoke and the implement end is a 1-3/8" 6 spline FF2 7.87" friction clutch. Fits Bush Hog Rotary Cutters
- It may be necessary to cut this driveline to length. Verify the length by ensuring that sufficient overlap of the drive tubes exists in all working positions without the possibility of bottoming out.
