A&I ProductsProduct photos: A&I Products
A-50034236

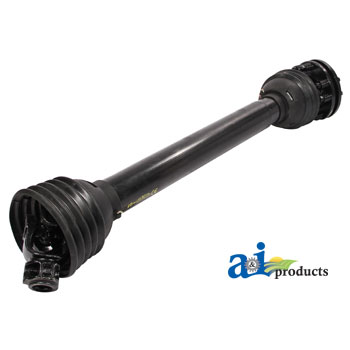

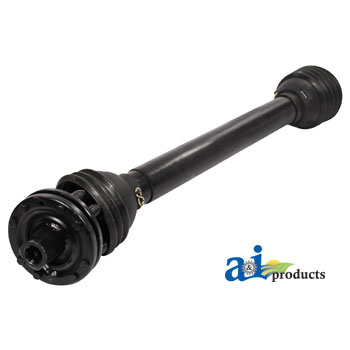

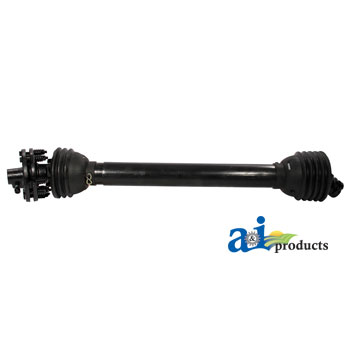

Driveline; Complete
by A&I Products · Drive Shaft / PTO
Driveline (by application) > Driveline Assembly
$329.67
each
Sold and shipped by GetPartFound LLC · 30-day returns on unused parts
Free standard shipping on orders over $500. Ships from the supplier's warehouse within 4 business days of your order; delivery typically takes 4 to 12 business days.
Authorized A&I Products reseller
Features and specs
| Dim L (12) | 1130 mm/ 45" |
|---|---|
| C to C | 885 mm/ 35" |
| Clutch Diameter | 7.09" |
| Clutch Type | 1 3/8" -6 |
| Tractor | 1 3/8" -6 |
| Weight | 47.94 lb |
- New 100 Series pull/tow Driveline with Friction Clutch. Driveline minimum C-to-C length: 35" (885 mm), Maximum C-to-C length: 52" (1310 mm), Total collapsed length: 45" (1140 mm). Driveline is size 5 and rated as a category 4 (47 hp). Tractor end: 1-3/8 6 Spline, Implement end: 1-3/8" 6 spline FF1 friction clutch. Clutch diameter is 7.09" Fits Bush Hog Rotary Cutters
- It may be necessary to cut this driveline to length. Verify the length by ensuring that sufficient overlap of the drive tubes exists in all working positions without the possibility of bottoming out.
Fits
2 models across 1 brand. Pick one to browse the rest of its parts.
