BP
Bondioli & PavesiProduct photos: Bondioli & Pavesi
A-14046448

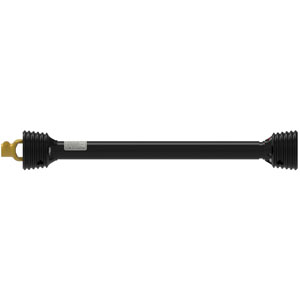

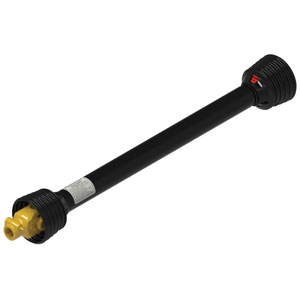

Complete Driveline
by Bondioli & Pavesi · Drive Shaft / PTO
Driveline > Driveline Assembly
$341.47
each
Sold and shipped by GetPartFound LLC · 30-day returns on unused parts
Free standard shipping on orders over $500. Ships from the supplier's warehouse within 4 business days of your order; delivery typically takes 4 to 12 business days.
Authorized A&I Products reseller
Features and specs
| compressed length | 48" |
|---|---|
| Tractor Yoke | 1 3/8" x 6 Spl. QD |
| Weight | 31.7 lb |
- Complete Driveline with Quick Disconnect Yokes. Minimum C-to-C Length: 48" (1210 mm), Maximum C-to-C Length: 75" (1910 mm), Total Collapsed Length: 56" (1420 mm). Tractor end: 1-3/8" - 6 Spline. Implement end: 1-3/8" - 6 Spline. Category 3 (35 hp). NOTE: It may be necessary to cut this driveline to length. Verify the length by ensuring that sufficient overlap of the drive tubes exists in all working positions without the possibility of bottoming out.
- Drivelines are furnished without Cross & Bearing Kit and Implement Yoke. Select kit and Implement Yoke as required. When Cross & Bearing Kit and Implement Yoke are assembled, the overall compressed length of the driveline will be 48".
- Weasler alternative to original part.
