A-14046248

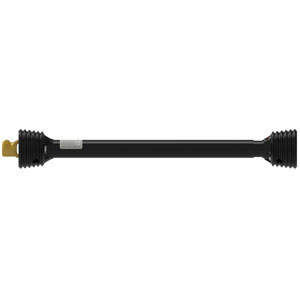

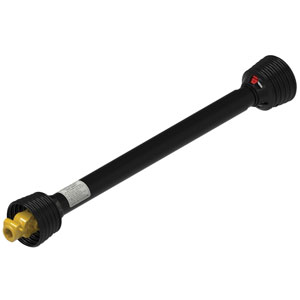

Complete Driveline Less Implement Yoke
by Bondioli & Pavesi · Drive Shaft / PTO
Driveline > Driveline Assembly
- Some ship-to locations may not be available.
$261.42
each
Sold and shipped by GetPartFound LLC · 30-day returns on unused parts
Free standard shipping on orders over $500. Ships from the supplier's warehouse within 4 business days of your order; delivery typically takes 4 to 12 business days.
Authorized A&I Products reseller
Features and specs
| compressed length | 48" |
|---|---|
| Tractor Yoke | 1 3/8" x 6 Spl. QD |
| Weight | 24.2 lb |
- Driveline with quick disconnect yokes. The minimum C-to-C length is 48". The maximum C-to-C length is 62". The driveline has a total collapsed length of 48". The tractor yoke is 1-3/8" - 6 Spline. Driveline is rated category 2 (20 hp), series 100. NOTE: It may be necessary to cut this driveline to length. Verify the length by ensuring that sufficient overlap of the drive tubes exists in all working positions without the possibility of bottoming out.
- Drivelines are furnished without Cross & Bearing Kit and Implement Yoke. Select kit and Implement Yoke as required. When Cross & Bearing Kit and Implement Yoke are assembled, the overall compressed length of the driveline will be 48".
- Weasler alternative to original part.
