BP
Bondioli & PavesiProduct photos: Bondioli & Pavesi
A-14006247

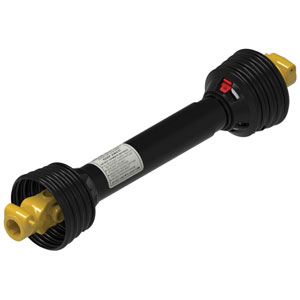

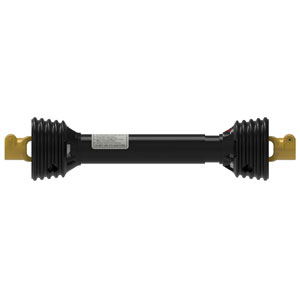

Driveline; W/ 1 3/8" 6 Spline QD Yokes
by Bondioli & Pavesi · Drive Shaft / PTO
Driveline (by application) > Driveline AssemblyDriveline > Driveline Assembly
- Some ship-to locations may not be available.
$317.25
each
Sold and shipped by GetPartFound LLC · 30-day returns on unused parts
Free standard shipping on orders over $500. Ships from the supplier's warehouse within 4 business days of your order; delivery typically takes 4 to 12 business days.
Authorized A&I Products reseller
Features and specs
| compressed length | 47" |
|---|---|
| implement yoke | 1 3/8" x 6 Spl. QD |
| Series | BYPY 2 |
| Tractor Yoke | 1 3/8" x 6 Spl. QD |
| Weight | 21.94 lb |
- Driveline with Quick Disconnect Yokes. Minimum C-to-C Length: 40" (1000 mm), Maximum Length: 62" ( 1525 mm), Total Collapsed Length: 47" (1200 mm). Tractor end: 1-3/8" - 6 Spline, Implement end: 1-3/8" - 6 Spline. Series: 100. Category: 2 (20 hp). NOTE: It may be necessary to cut this driveline tolength. Verify the length by ensuring that sufficient overlap of the drive tubes exists in all working positions without the possibility of bottoming out. Fits Bondioli & Pavesi 100 Series: Size 2.
- Weasler alternative to original part.
