A-00768174A

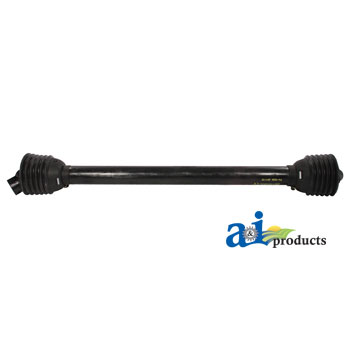

Driveline; Complete
by A&I Products · Drive Shaft / PTO
Driveline (by application) > Driveline Assembly
$139.61
each
Sold and shipped by GetPartFound LLC · 30-day returns on unused parts
Free standard shipping on orders over $500. Ships from the supplier's warehouse within 4 business days of your order; delivery typically takes 4 to 12 business days.
Authorized A&I Products reseller
Features and specs

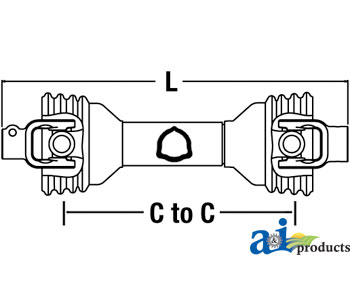

| C to C Max | 1560 mm/ 62" |
|---|---|
| C to C Min | 1035 mm/ 41" |
| Category | 3 (35HP) |
| Implement | 1 3/8" RB 1/2" PH |
| Series | 100 |
| Total Collapsed Length | 1230 mm/ 48" |
| Tractor | 1 3/8" -6 |
| Type | 6 ft. Lift / 3-pt. Hitch |
| Weight | 29.5 lb |
- New 100 Series replacement complete Rhino driveline. Rated category 3 (35hp). Minimum C-to-C length: 41� (1035 mm), Maximum C-to-C length: 62� (1560 mm), Total collapsed length: 48� (1230 mm). Tractor yoke is 1-3/8� 6 spline, implement yoke is 1-3/8� Round Bore with 1/2� pin hole. Driveline has 6 ft. lift on a 3 pt. hitch. Fit Rhino Rotary Cutter models.
- It may be necessary to cut this driveline to length. Verify the length by ensuring that sufficient overlap of the drive tubes exists in all working positions without the possibility of bottoming out.
